Decorative plates Share

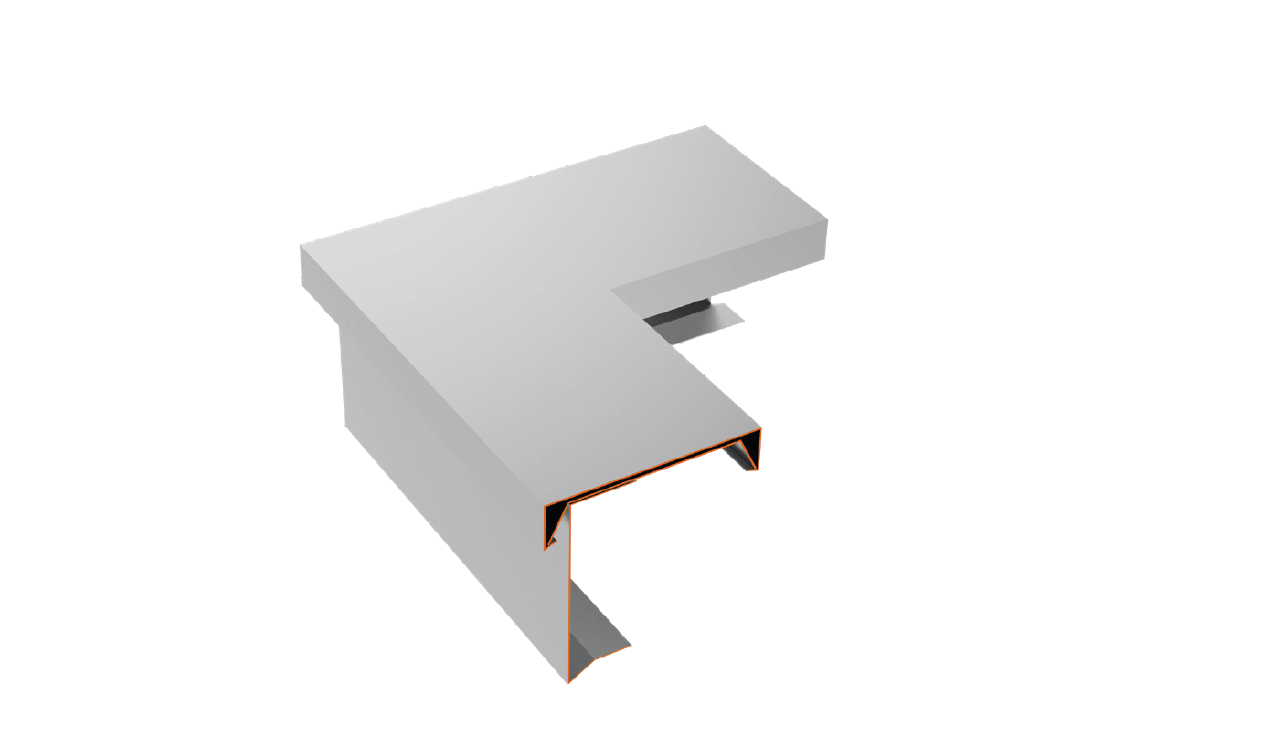

The balcony decorative plates are bent to measure from aluminium sheet provided with a protective film.

Alloy

Al Mg 1

Quality

AG 06 - 5005 -1/2 hard

Thickness

2 mm

Length

3000 mm

Shape

• Vertical front side with variable height (thickness concrete + 60 mm)
• Horizontal strip above and below 50 mm, with a flange of 13 mm

Brackets made from extruded tempered aluminium, width: 100 mm, thickness: 2 mm, with ribbed strips.
The rot-free PVC-foam rubber strips insulate the brace from the cover plate.
Joint covers made from bent aluminium, 100 mm wide.
